IRIDEX – Laser Infrarosso IQ810

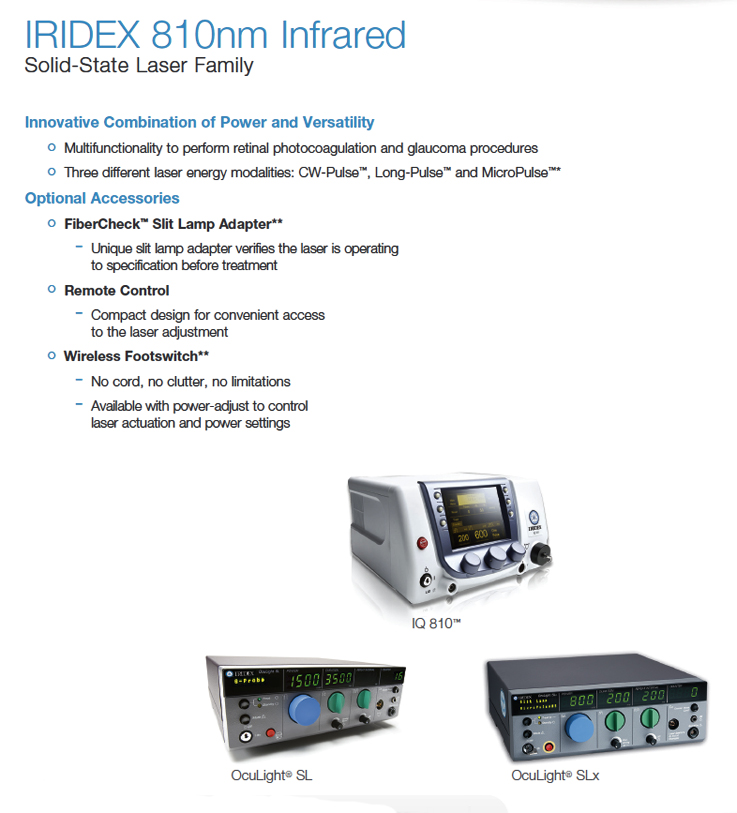

IQ 810™ Laser System

Infrared console that offers high performance for retinal photocoagulation and glaucoma procedures, including transscleral applications.

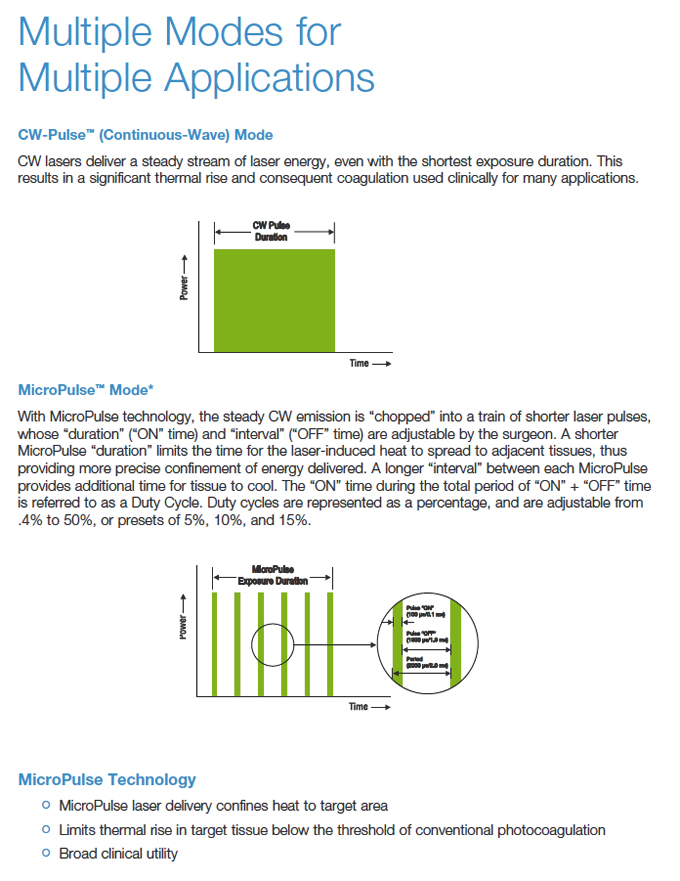

MicroPulse™ Laser Therapy for Fovea-Friendly™* laser grids.

Infrared wavelength uniquely designed for transscleral cyclo photocoagulation (TSCPC).
Intuitive graphic touch screen interface for ease of use.
Repeatable macular and foveal laser sessions.

IRIDEX ON EYE-TUBE

Categoria:

Versatile laser platform for multiple therapeutic indications
– Infrared wavelength uniquely designed for transscleral cyclo photocoagulation (TSCPC)
– Performs both traditional and transscleral retinal photocoagulation

Intelligent and intuitive design
– Intuitive graphic touch screen interface for ease of use
– Programmable memory presets for multiple users

Module for MicroPulse Laser Therapy
– Repeatable macular and foveal laser sessions
– Success with refractory and sub-clincal edema

Specifications
Wavelength: 810nm Infrared
Weight: 5.0kg
Dimensions: 18cm x 30cm x 30cm
Connector Type: Resistor
Electrical: 100-240VAC, 50/60Hz
Exposure Duration: CW-Pulse 10-900ms; LongPulse 10s-30min
Exposure Interval: 50-1000ms
MicroPulse Duration: MicroPulse 0.025-1.000ms
MicroPulse Interval: MicroPulse 1.00-9.50ms
Aiming Laser: Diode laser, 635nm nominal

Delivery Device Power Output
Portable SLA: 0-2000mW
LIO: 0-2000mW
LIO-LS: 0-2000mW
EndoProbe: 0-2000mW
G-Probe: 0-3000mW
DioPexy: 0-2000mW
OMA: 0-2000mW

Compatible with all common delivery modalities including those for transscleral applications

Slit Lamp Adapters (SLAs)
– Standard
– Large Spot

TruFocus™ Laser Indirect Ophthalmoscope (LIO)
– Standard
– Large Spot
– Dual (810 nm / 532 nm)
