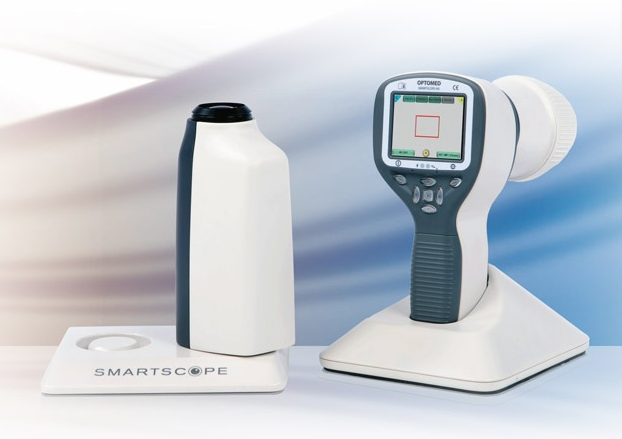

OPTOMED – Fundus Camera Portatile SMARTSCOPE PRO

RETINAL MODULE SMARTSCOPE EY4
Smartscope PRO with optics module EY4 enables non-mydriatic eye fundus examination through undilated pupil, and allows acquisition of images during screening for diabetes and other vision-threatening diseases, such as glaucoma and AMD. Low flash exposure minimizes the patient discomfort.
With the Slit Lamp Adapter the camera can be fitted to any Slit Lamp with patient head rest to bring more stationary setup at the doctor’s office.

Features:
– Non-mydriatic digital fundus camera – dilation not necessary
– Field of view 40 degrees
– 9 internal fixation targets for peripheral imaging (total FOV 70 x 52 degrees)
– Accurate and silent Autofocus
– Diopter compensation -20D to +20D
– Minimum pupil size 3.5 mm
– Optical resolution > 60 lp/mm (ISO 10940:2009)
– Color, Red-free and IR imaging
– Eye cup for support and comfort
– Dimensions: 67 (w) x 73 (h) x 160 (d) mm
– Weight: 300 g

EYE ANTERIOR MODULE SMARTSCOPE ES2
With attachable ES2 module the Optomed Smartscope® M5 provides high resolution digital image data of anterior segment of the eye.
The cobalt blue LEDs allow fluorescent imaging to detect a dry eye or any cuts or punctures on the surface of the eye, cornea, pupil, or sclera. 6 x digital zoom provides a magnified image for viewing the details of the area of interest.

Features:
– White and cobalt blue LEDs
– Direct illumination
– Silicone support to stabilize camera when targeting
– Autofocus and optional manual focus
– 6 x Digital zoom
– Image resolution 2560 x 1920 Pixels
– Dimensions: 79 (h) x 70 (d) mm
– Weight: 80 g

FUNDUS FLUORESCEIN ANGIOGRAPY MODULE SMARTSCOPE FA
Smartscope M5 camera with Smartscope FA module is a perfect combination of Slit Lamp and hand-held mode providing high quality Fluorescein Angiograms with a wide 40 degrees field of view. 9 internal fixation targets enable peripheral imaging (total FOV 70 * 52 degrees). Smartscope FA is easy to operate and offers fast image capture ability and a detailed view of the entire fluorescein dye circulation dynamics. Low flash exposure minimizes the patient discomfort.

Features:
– Hand-held
– 40 degrees Field of view
– 9 internal fixation targets for peripheral imaging (total FOV 70 * 52 degrees)
– Timer display for effective data recording and analyzing
– Accurate and silent Autofocus
– Diopter compensation -20D to +20D
– Minimum pupil size 4.5 mm
– Optical resolution > 60 lp/mm (ISO 10940:2009)
– Silicone rubber eye cup for support and comfort
– Dimensions: 67 (w) x 73 (h) x 160 (d) mm
– Weight: 300 g

With a special Slit Lamp Adapter can be mounted to any Slit Lamp with patient head rest.
WiFi enables easy image transfer to PC, laptop, tablet or mobile devices. With Optomed Workstation software (sold separately) the images can be viewed, shared and stored locally and sent directly to a DICOM compatible system (PACS or other) of the hospital network.
